Specification:

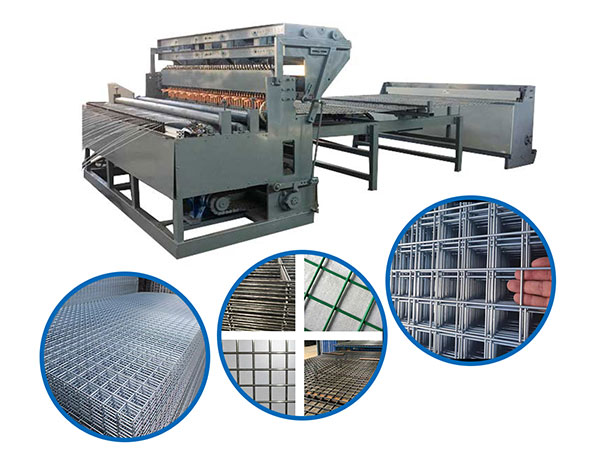

About the machine:
1. Main Machine: Compress tightly once time and welding separately, it could promise the welding firmness. It include welding machine part, mesh dropping parts, mesh pulling part, and PLC control cabinet.
2. PLC Control system adopts programming technique from Mitsubishi of Japan, touch screen operating, Chinese-English display, easy operation.
3. Mesh pulling system adopts PLC programming system, servo motor controlling, higher precision, it could realize different mesh size.
4. Cross wire feeding system adopts store holder, mesh dropping aromatically, easy and convenient operation.
5. Mesh dropping system automatically.
Basic Technical Parameter:
Wire | 3-6mm | Welding width | 2.5M |
Hole size | 50-300mm | Welding speed | 40-60times/minute |
Max welding width | 6M | Dimension | 6x3.2x1.8m |
Voltage | 380-440v,50HZ | Transformer | 100KVA*7 |
Weight | 4.5TON | Welding spot | 51 |
Welding distance | Automatically | Cooling ways | naturally |
Distance between line wires | 50-300 | Line wires feeding | By manual |
Cross wires feeding | 50-300 | ||
Cross wire material | Pre-straightened wires | ||
Line wire material | Pre-straightened wires | ||
Working Condition:
Item | Working condition |
External power source | Three-phase power 380V50HZ, distance from main control cabinet ≤50 meters, power supply voltage fluctuation ≤±5% |
The control voltage | DC24V |
The power supply capacity | 1500KVA |
Three times welding main transformer power | 250-500KVA |
Single-phase load area of power line | The copper wire is 120 square |
The surrounding environment | Temperature 0 ~ 40℃, air relative humidity (25℃) ≤90% |
The cooling system | Clean, neutral to slightly alkaline (PH=7 ~ 8) water, flow 5.12m3/h, inlet temperature 25 ~ 30℃, inlet pressure 0.15 ~ 0.3mpa,cooling capacity of 29kw |
Air supply requirements | The working pressure is 0.6mpa and the flow is about 130 m3/h |
This Automatic mesh welding line can make mesh in sheet or roll
Product details:
Finished Product:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. We are warmly welcome clients from worldwide to visit our factory and cooperate with us
Q: Do you do OEM?
A:Yes
Q: I know nothing about the import, can you help me?
A: This will not be a problem. If you do not know how to import, our cooperated freight forwarder will help you to import. You only have to pay a small money to them and they will take care of everything. It is very easy and simple.
Q: What should i do if we feel hard to use the machine?
A: If you need ,at any time, we can send our engineers to your factory for training, debugging machine and maintenance.
Operating Instruction&Maintenance Manual attached with the machine.we will send you the solution by email or phone within 24 hours,When we receive your service request. We can send you video for learning
Q:If the parts was broken, how about the solution?
A: 1)Non-artificial damage parts, within warranty period, can be provided free of charge
2)Custom-made parts with detailed drawing can be provided
