Wire Mesh Welding Machine

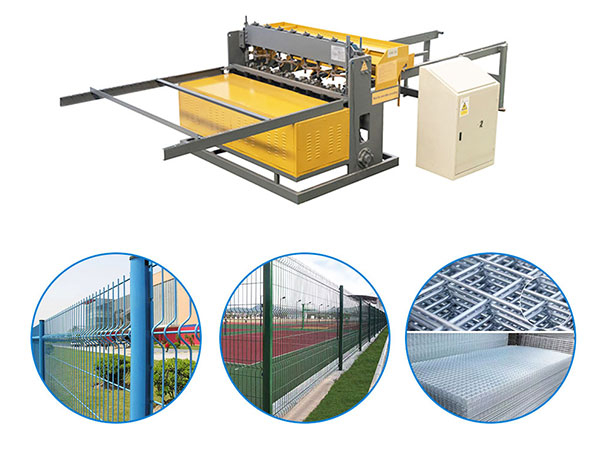

The CNC Wire Mesh Welding Machine is a complete equipment for wire mesh welding, which is manufactured by Chengrui company based on learning foreign advanced experiences, technologies and actual production demands in the international market. This series equipment can perform high quality cross-welding for hot-rolled ribbed rebar, cold-rolled ribbed rebar and round rebar. It has many favorable features, such as high output, high precision, easy modification, low operation failure rate, strong capability in energy saving, low consumption and high quality.
Specification
Model | CRHM2500 | CRHM1500 |
Rated voltage | 3phase 380V 50Hz | 3phase 380V 50Hz |
Longitudinal wire space | 100-300mm | 100-300mm |
Welding diameter | 5-12mm | 3-10mm |
Number of solder joints | 24 | 8 |
welding speed | 40-65rows/min | 40-75rows/min |
welding width | ≤2500mm | ≤1500mm |
Spiral wire space | 50-300mm | 25-300mm |
Rated capacity | 150Kva*13 | 150Kva*2 |
Spiral wire feeding | Straightening and cutting wire | Straightening and cutting wire |
Motor power | 11Kw | 11Kw |
Overall dimension(L*W*H) | 14000mm*3100mm*2300mm | 14000mm*2100mm*2300mm |
Overall weight | 6500Kg | 3000Kg |
Wire mesh welding machine will be nude packed in container, the parts and tool will be packed in wooden case.suitable for long distance sea shipment.
