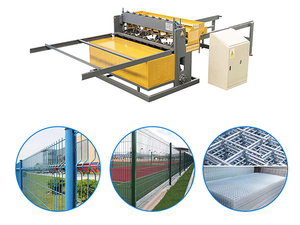

Machine Characteristics
Wire diameter: 3-6mm
Width: 2500mm
Mesh size: 50-300mm
Welding transformer: 6*125KVA
Main power: 3KW
Welding Speed: 40-80times/min
Welding spot: 50pcs
Weight: 2T
Dimension: 3500*1700*6000mm
Part of the machine
| 1. Control system Panasonic (Japan) PLC program and HMI. Input front-panel is Weinview touch screen, very easy to operate.
| 2. Holding wire platform One pc holding wire platform.used for putting the line wire for materials. The platform distance can be adjusted.
| 3. Cross wire feeding Hopper device for cross wires, has more capacity and is controlled by step motor, it works automatic.
|
| 4. Slot tunnels for line wire Slot tunnel device for line wires, can be adjusted for different wire diameters. the mesh aperture is very accurate.
| 5. Mesh pulling system It is controlled by Panasonic (Japan) servo motor and SMC (Japan) air cylinders, can adjust cross wire space.
| 6. Welding electrodes Welding electrodes are made of pure red copper and chromised bronze, durable, can be used at least 3-6 months.
|
| 7. Platform for workers The platform for workers is strong & and easy for worker stand on it to make cross wire.
| 8. Adjustment plug Adjustment plug is used to adjust distance of welding spot and make different mesh opening.
| 9. Transformers 6pcs welding transformers and machine can work stable.
|
(Price include: main machine, Holding wire platform, Drag mesh device, Cross wire feeding, PLC control (Mitsubishi brand), 2 sets Wire straightening and cutting machine, 1 set fence bending machine.
Auxiliary equipment
wire straightening and cutting machine
Wire diameter: 3-6mm Max cutting length: 6m Cutting speed: 30-50m/min Power: 2.2KW, 2.2KW Straightening accuracy: ±1mm Machine weight: 500KGS |  |
Fence Panel Bending machine
| Wire diameter: 3-6mm Max fence width: 2.5 Straightening accuracy: ±1mm Machine weight: 2000KGS |  |
The finished Wire Mesh Fence Panel
After wire mesh welding machine
| After fence panel bending machine
|
Loading of machine
 |  |
Remarks:
Payment
30% T/T as deposit, 40% T/T when loading the container, the balanced 30% T/T is against B/L copy.
Delivery
Within 25 days after we get the advanced payment.
Container Demand: 40ft container
Voltage
380V/50Hz (extra voltage will be defined).
Machine Installation:
There is a instruction bracket following the machines which is enough as a installation guide.
If necessary, we can also settle technician to help on installation and work training.the customer should take charge for the visa, air ticket worker’s accommodation in buyer’s county .
Guarantee:
Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts were broken caused by the product problem, seller will offer the parts by free. If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
